Continuous integration & Continuous delivery CI/CD can be very useful technique when used properly for automating mundane tasks in your development process.
In this post I will show you 3 different workflows (or pipelines) that serve different purposes:
- CI pipeline for PHP application testing CRUD functionality,
- CD pipeline for React.js frontend deployment into DOKS cluster,
- Build pipeline for Nuxt(Vue.js) frontend and push into Azure ACR.
Each workflow is a scripted array of steps streamlinng some mundane process.
1. CI CRUD tests PHP pipeline
This workflow on push to master will:
check outproject repository,- runs container of
database server, create database schema& loads sample data,run tests.
name: PHP 7.4 Tests
on:
push:
branches:
- master
jobs:
test:
runs-on: ubuntu-latest
services:
database:
image: mysql:8
env:
MYSQL_ROOT_PASSWORD: my_secret_pass
options: >-
--health-cmd="mysqladmin ping"
--health-interval=10s
--health-timeout=5s
--health-retries=3
ports:
- 3306:3306
steps:
- name: Checkout code
uses: actions/checkout@v3
- name: Set up PHP
uses: shivammathur/setup-php@v2
with:
php-version: '7.4'
extensions: mbstring, mysqli
- name: Set env variables
env:
ACTIONS_ALLOW_UNSECURE_COMMANDS: 'true'
run: |
echo "::set-env name=DATABASE_HOST::0.0.0.0"
echo "::set-env name=DATABASE_USER::root"
echo "::set-env name=DATABASE_PASS::my_secret_pass"
echo "::set-env name=DATABASE_NAME::database"
- name: Load MySQL schema and data
run: mysql -h ${DATABASE_HOST} -u ${DATABASE_USER} --password=${DATABASE_PASS} < ./_db/1_create_proc_schema_init_data.sql
- name: Prepare env
run: composer install --no-interaction --no-progress
- name: Run PHPUnit
run: vendor/bin/phpunitPreview
Look at https://github.com/KlosStepan/SwimmPair-Www for inspiration how the workflow is run, tests are written and overall setup of this PHP project.
2. CD of React.js Gatsby blog into Kubernetes pipeline
This workflow on manual workflow dispatch:
check outproject repository,install dotctl(DigitalOcean CLI),build docker image,- logs in &
push into dockerhub, - (re)
deploy into DOKS.

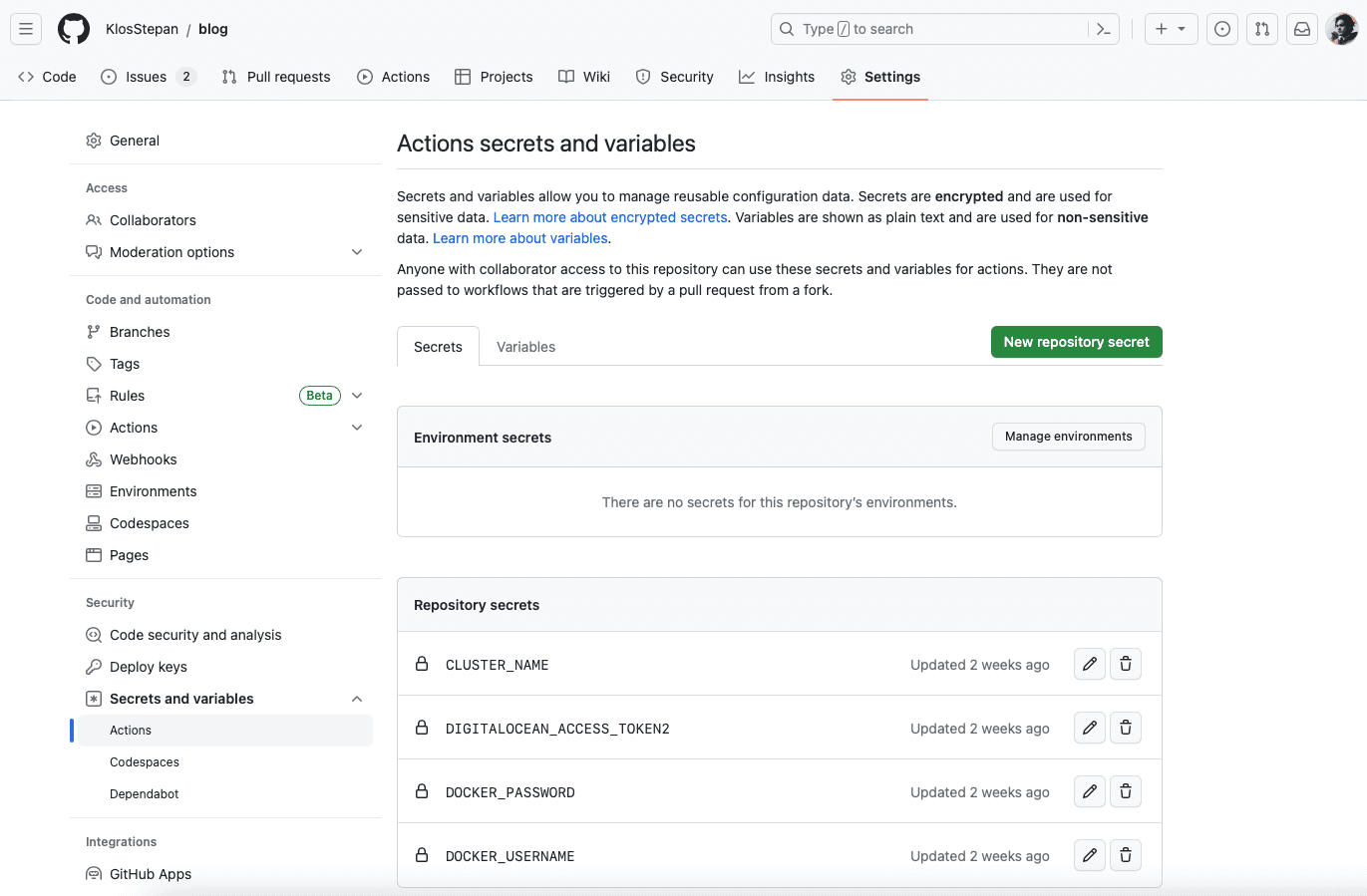

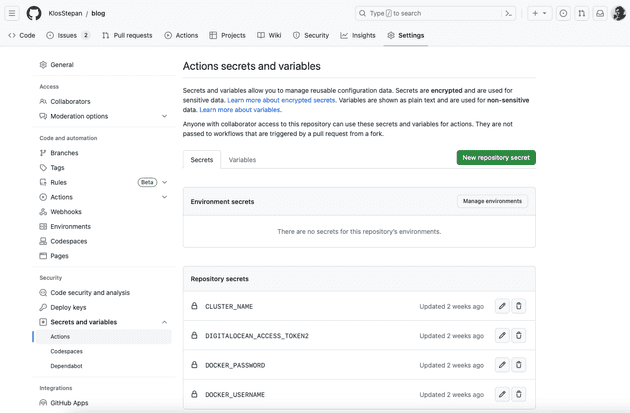

In order to run script with SECRETS you need to have them added into the GitHub repository in the first place.
GitHub Workflow
name: Build->push->deploy 'my-blog' into DigitalOcean Kubernetes cluster
on:
workflow_dispatch:
jobs:
build-push-deploy:
runs-on: ubuntu-latest
steps:
- name: Checkout repository
uses: actions/checkout@v3
- name: Install doctl
uses: digitalocean/action-doctl@v2
with:
token: ${{ secrets.DIGITALOCEAN_ACCESS_TOKEN2 }}
- name: Build Docker image
run: docker build -t your_dockerhub/my-blog:$(echo $GITHUB_SHA | head -c7) .
- name: Dockerhub login
run: docker login --username ${{ secrets.DOCKER_USERNAME }} --password ${{ secrets.DOCKER_PASSWORD }}
- name: Push image to Dockerhub
run: docker push your_dockerhub/my-blog:$(echo $GITHUB_SHA | head -c7)
- name: Update deployment file
run: TAG=$(echo $GITHUB_SHA | head -c7) && sed -i 's|<IMAGE>|your_dockerhub/my-blog:'${TAG}'|' $GITHUB_WORKSPACE/config/deployment.yaml
- name: Save DigitalOcean kubeconfig with short-lived credentials
run: doctl kubernetes cluster kubeconfig save --expiry-seconds 600 ${{ secrets.CLUSTER_NAME }}
- name: Deploy to DigitalOcean Kubernetes
run: kubectl apply -f $GITHUB_WORKSPACE/config/deployment.yaml
- name: Verify Deployment
run: kubectl rollout status deployment/my-blog$GITHUB_WORKSPACE/config/deployment.yaml
apiVersion: v1
kind: Service
metadata:
name: my-blog-service
spec:
type: ClusterIP
ports:
- port: 80
targetPort: 8080
selector:
app: my-blog
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: my-blog
spec:
replicas: 2
selector:
matchLabels:
app: my-blog
template:
metadata:
labels:
app: my-blog
spec:
containers:
- name: my-blog
image: <IMAGE>
ports:
- containerPort: 8080
env:
- name: MESSAGE
value: Hello from my-blog Deployment!Dockerfile
FROM node as build
WORKDIR /app
COPY . .
RUN npm install --legacy-peer-deps
RUN npm run build
FROM nginxinc/nginx-unprivileged
COPY /app/public /usr/share/nginx/htmlPreview
To preview repository with all things described please look into https://github.com/KlosStepan/blog.
3. Build Nuxt (Vue.js) and push into Azure ACR
This workflow on manual workflow dispatch will:
check outproject repository,build docker imageof the application,login into Azureandpush image.
GitHub Workflow
name: Build->push 'app-frontend' into Azure ACR
on:
workflow_dispatch:
jobs:
build-push:
runs-on: ubuntu-latest
steps:
- name: Checkout repository
uses: actions/checkout@v3
- name: Build Docker image of frontend as 'app-frontend'
run: docker build -t ${{ secrets._AZURE_REGISTRY_URL }}.azurecr.io/app-frontend:$(echo $GITHUB_SHA | head -c7) .
- name: Login into Azure
uses: azure/docker-login@v1
with:
login-server: ${{ secrets.AZURE_REGISTRY_URL }}.azurecr.io
username: ${{ secrets.AZURE_LOGIN }}
password: ${{ secrets.AZURE_PASSWORD }}
- name: "Push 'app-frontend' into Azure ACR"
run: docker push ${{ secrets.AZURE_REGISTRY_URL }}.azurecr.io/app-frontend:$(echo $GITHUB_SHA | head -c7)Preview
This application is private, so no futher information are be shared. Some overall information is that Azur User PUSH1 credentials have to be stored in GitHub SECRETS as well and the user must have limited rights to perform only these actions.
Futher development
We intend to add deployment functionality by performing a rolling update into Azure Kubernetes Service (AKS) and we must extent PUSH1 rights to do so. It is similar to Workload #2, the blog but instead of DigitalOcean Kubernetes into Azure AKS.
